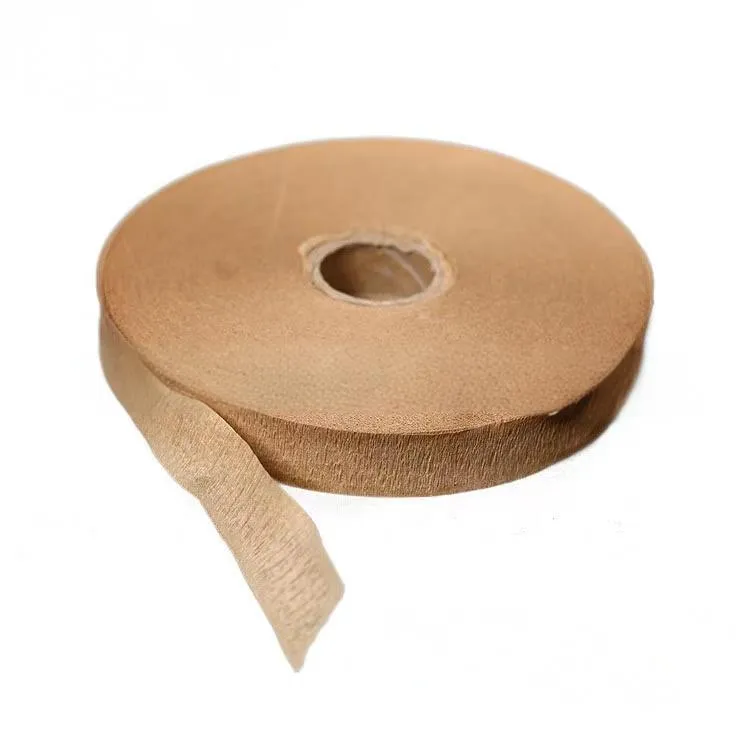

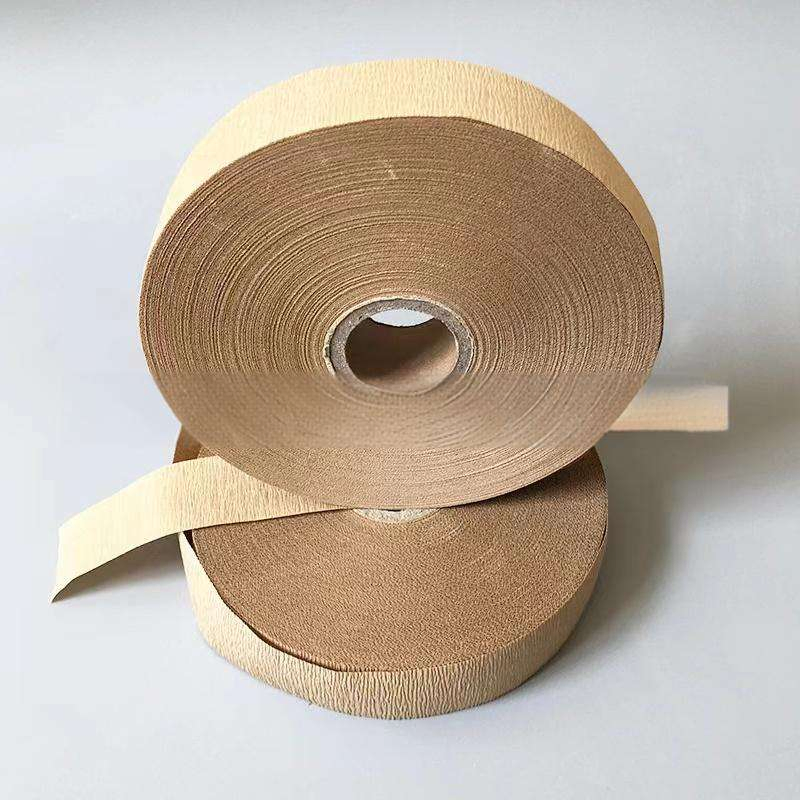

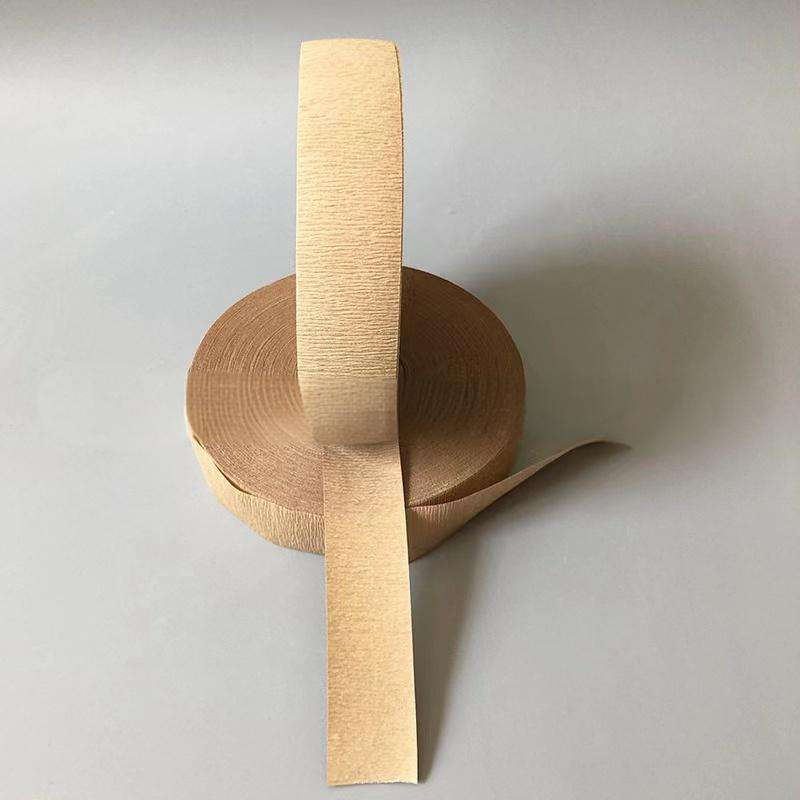

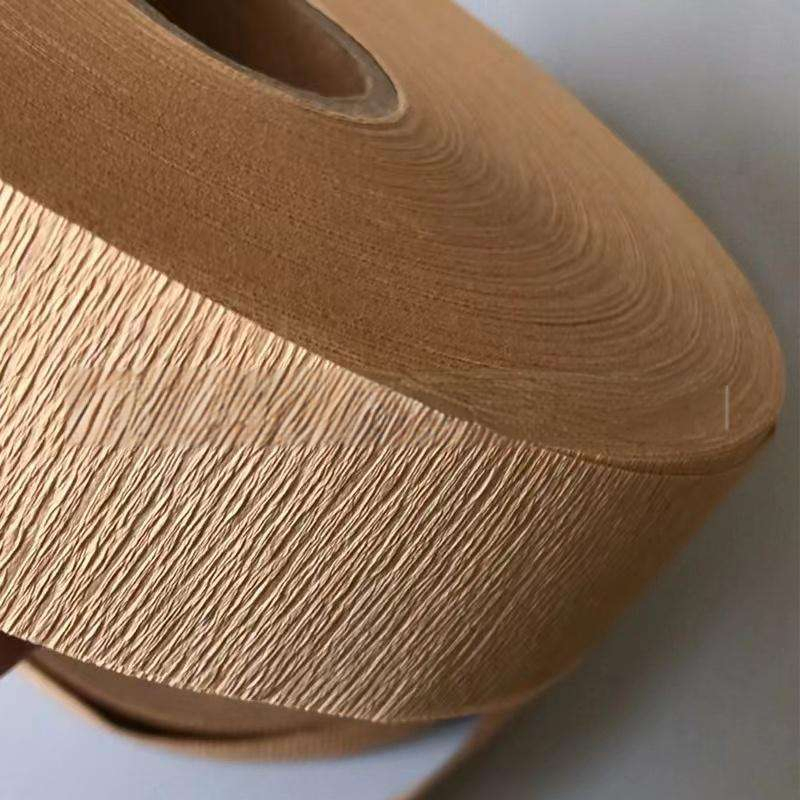

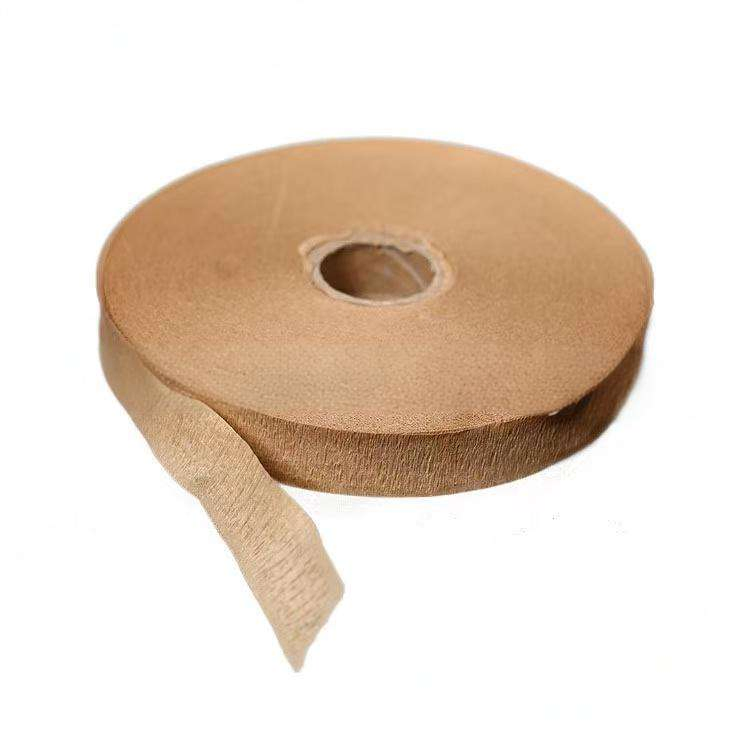

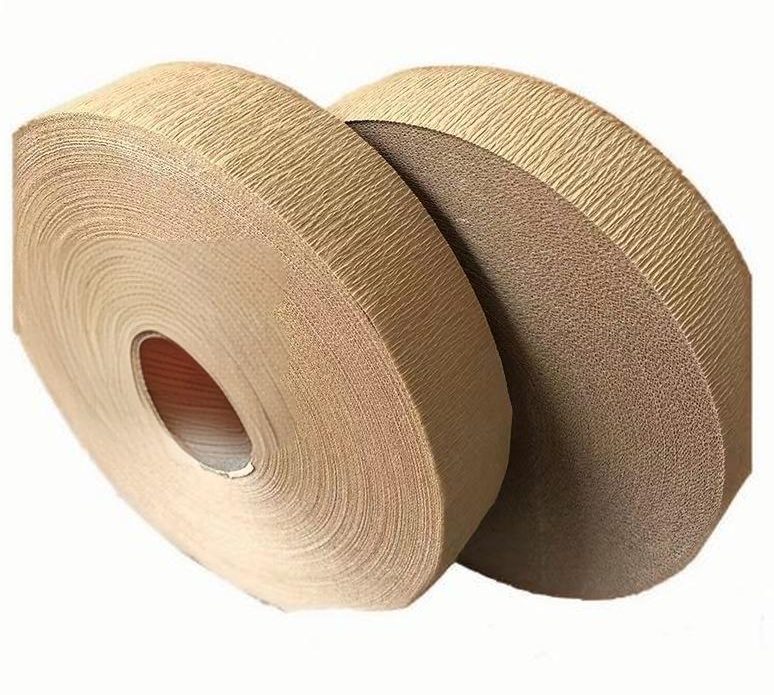

Factory Price High Quality Crepe Kraft Insulation Paper

ℹ️ Overview & Basic Info

Model NO.

LB-03

Material

Wood Pulp

Maximum Voltage

20KV~100KV

Thermal Rating

A 105

Thickness

0.04-0.125mm

Tensile Strength

Excellent

Type

Insulation Paper

Product Name

High Voltage Electrical Insulation Crepe Paper

Voltage

35kv

Origin

China

📋 Specification

Property	Unit	Standard	Testing Result
Thickness Tolerance	%	±7.5	-0.8
Apparent density	g/cm3	1.15-1.30	1.28
Shrinkage	%	≤0.50	0.48
MD	%	≤0.70	0.67
CMD	%	≤6.00	5.8
Ash content	%	≤1.0	0.52
PH of aqueous extract	%	6.0-9.0	7.4
Oil absorption	%	≥6.0	8.5
Conductivity	Ms/m	≤15.0	7.5
Electrical strength	KV/mm	≥8.0	12.2
Moisture content	%	5.0-9.0	7.2

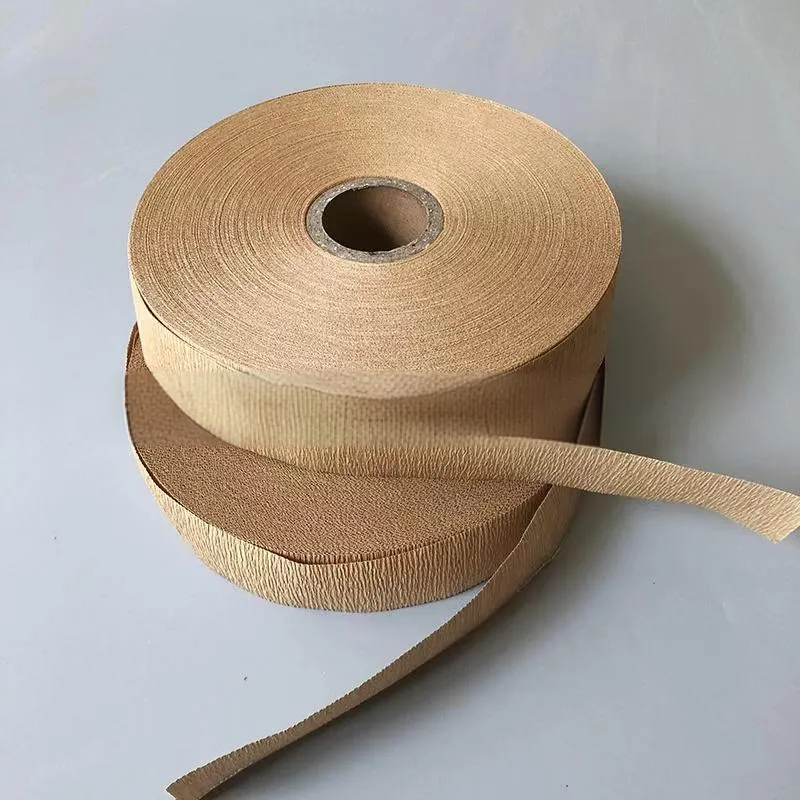

🔍 Products Description

⭐ Recommend Products

Class E Two-Layer 6521 Transformer Composite Material Insulation Fish Paper

$0.12 / kg

Excellent Thermal Resistance Customizable Meta Aramid Electrical Insulating Paper

$3.50-7.50 / kg

6kV 6641 Electric Motor F-Class Polyester Film DMD Insulation Paper

$1.70-2.10 / kg

Fine Quality Red Yellow Black Blue High Temperature 19mm Insulating Tape

$0.14-0.16 / pc

✅ Why Choose Us

🛠️ Customization

🏢 Company Profile

Specialized in professional aminated paper DMD (thickness: 0.02 mm-0.23mm), Insulation Composite Laminated Material (DMD, NMN, NHN, 100% saturated DMD, Aramid Paper, Diamond dotted paper), and Insulation Fiberglass Sleeving.

Our range includes PVC fiberglass sleeves, Silicone rubber fiberglass sleeves, Acrylic fiberglass sleeve, PU fiberglass sleeve, Mylar film (Polyester film), and insulation tapes used in motors, transformers, generators, and reactors. We hold ISO9001, SGS, ROHS, and REACH certificates.

Products are widely exported to Europe, Turkey, Brazil, South Korea, Tunisia, India, Russia, and other international markets with a focus on customer care.
