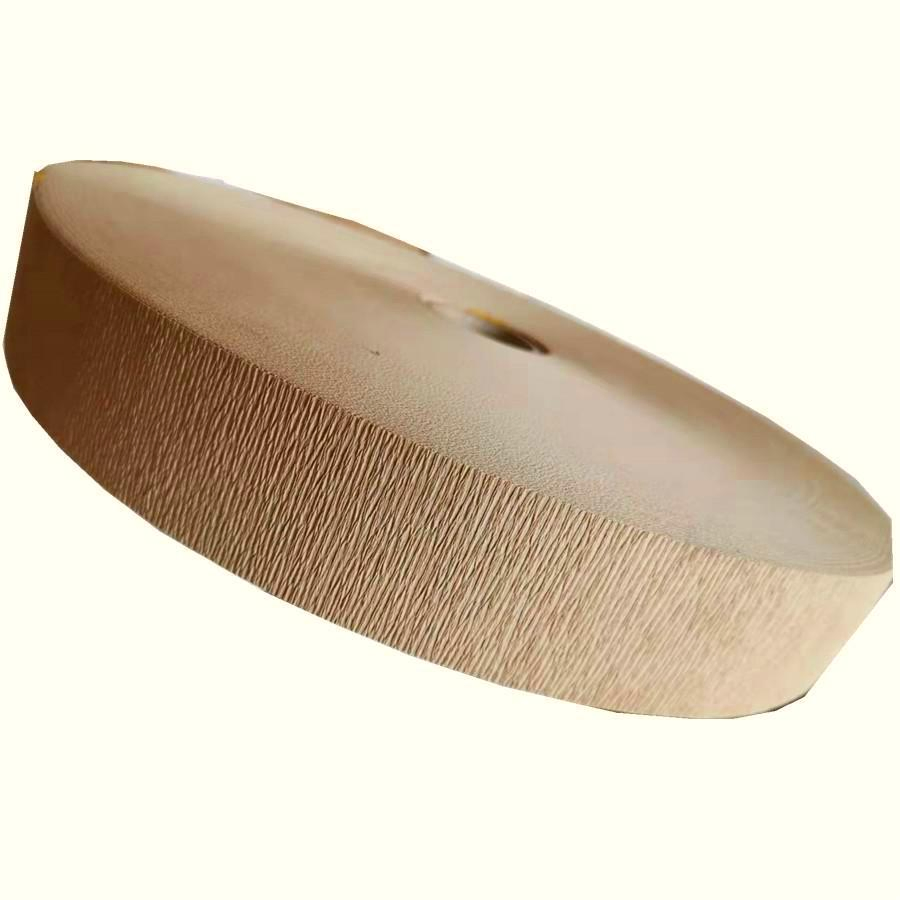

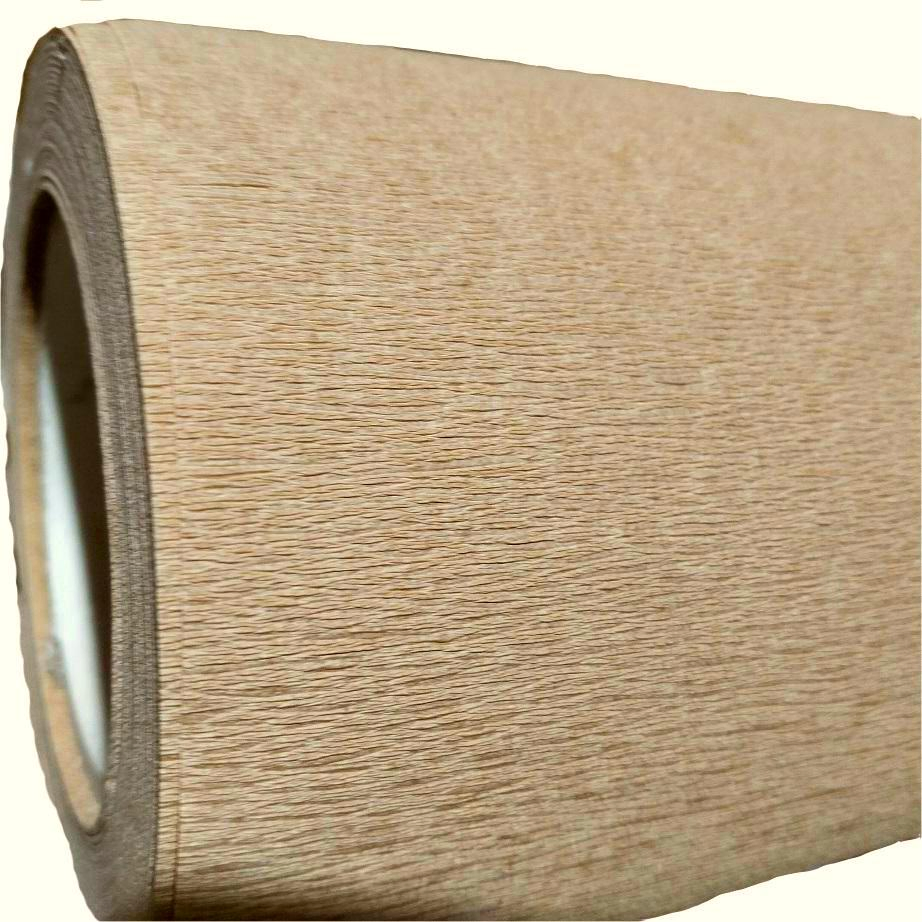

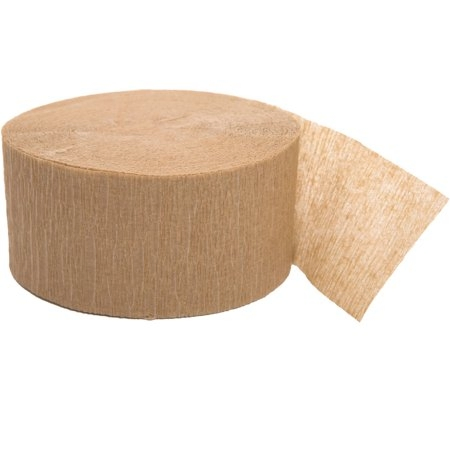

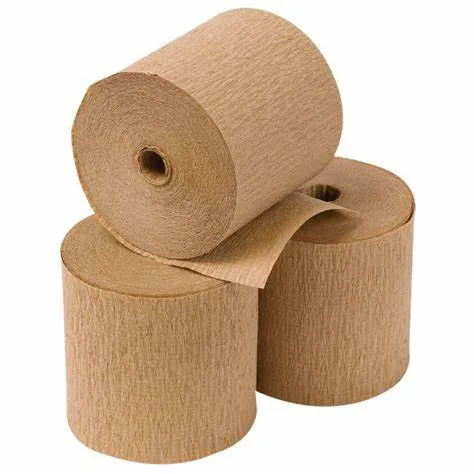

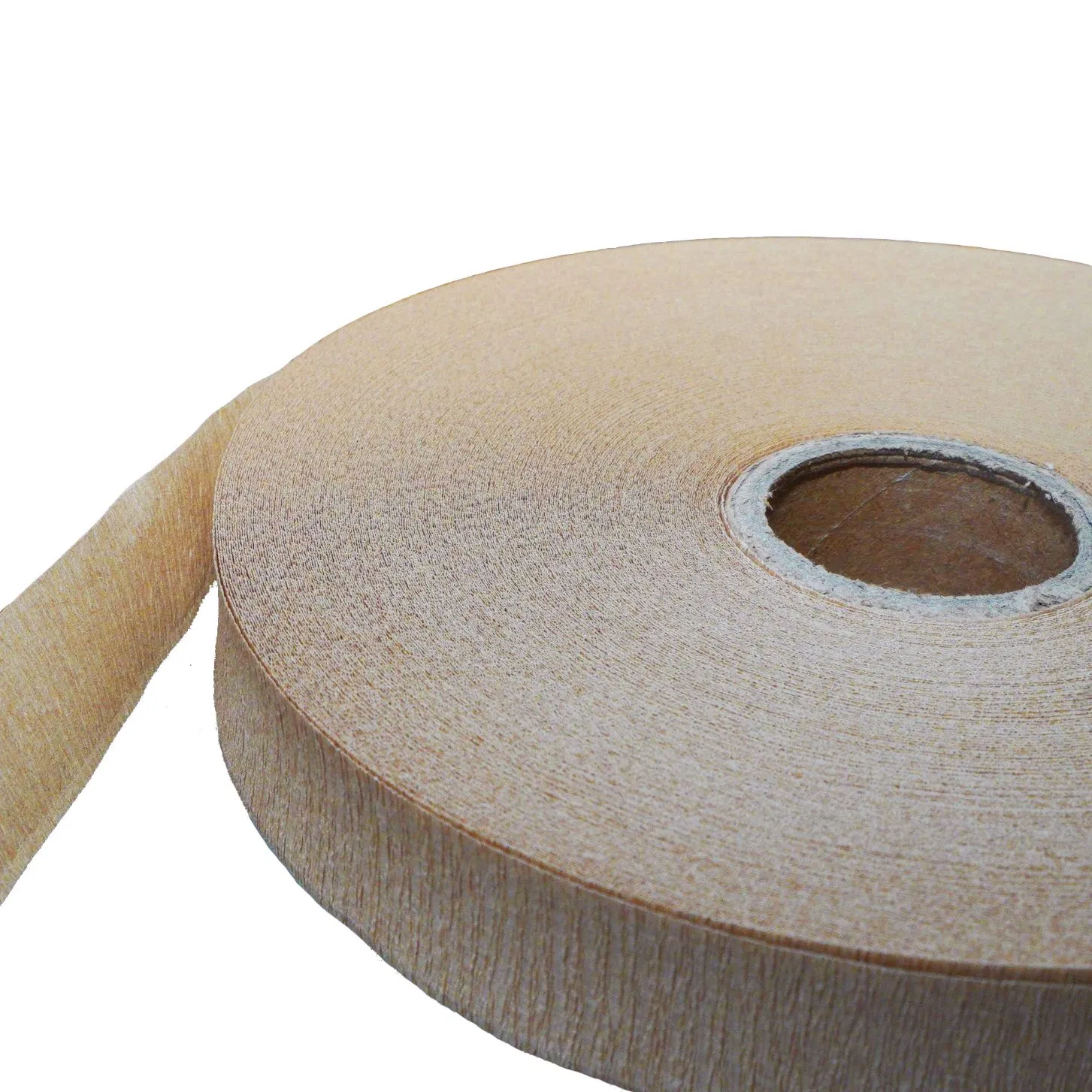

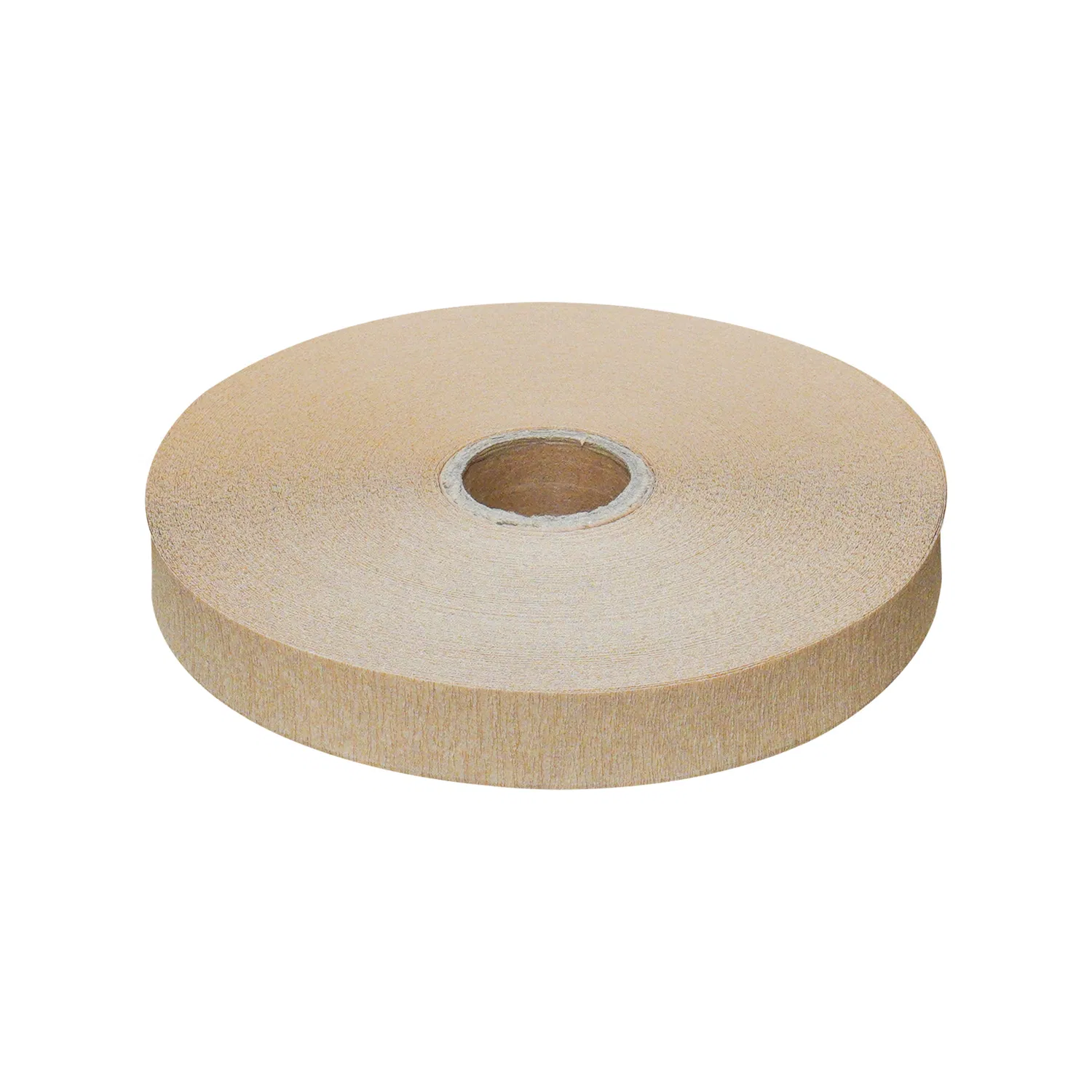

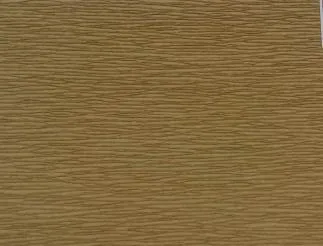

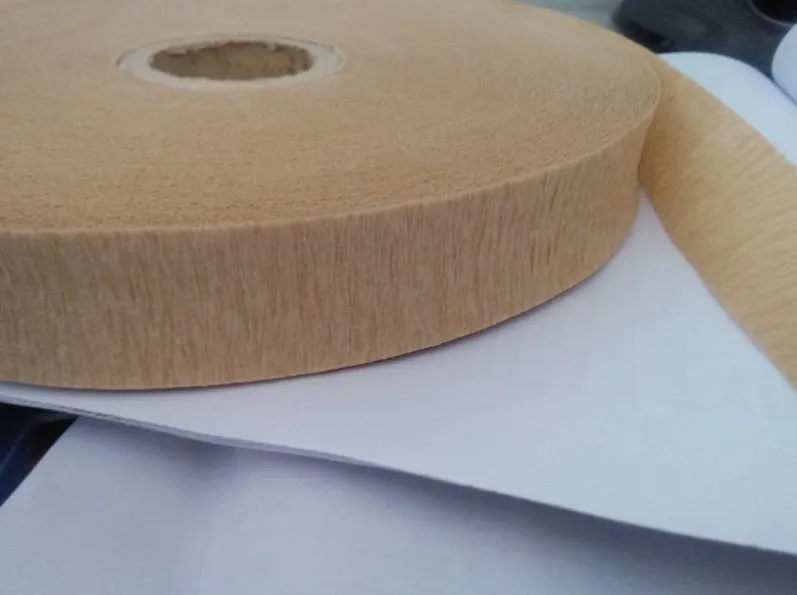

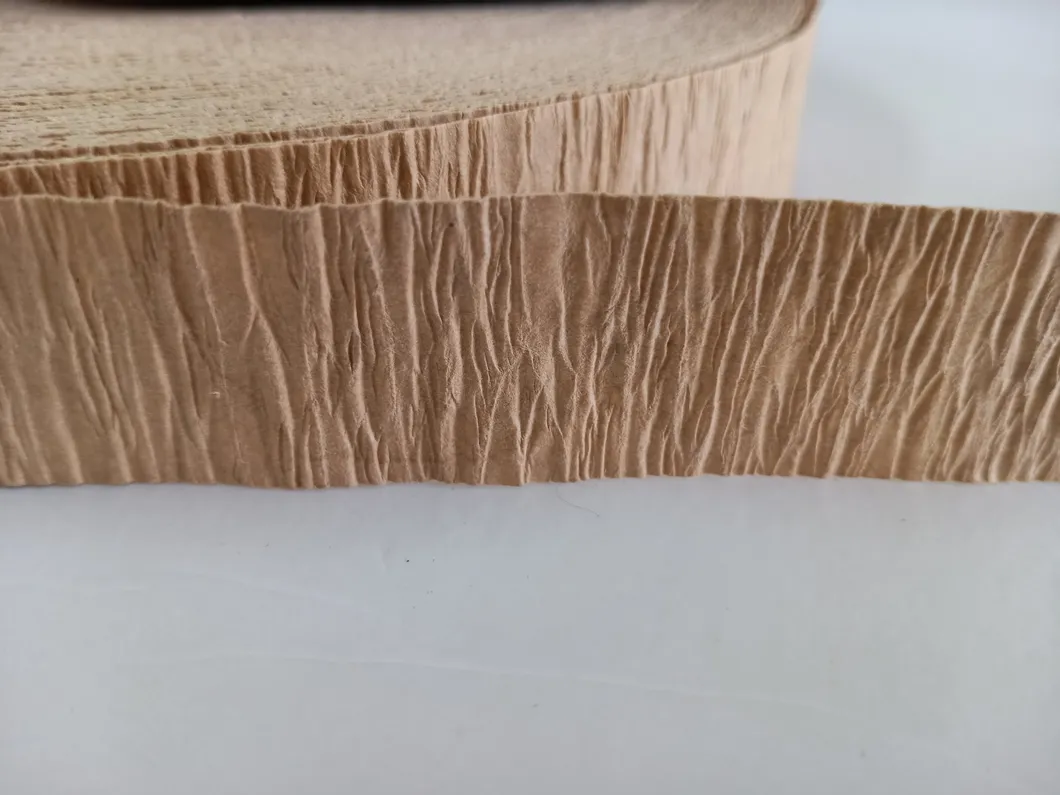

Description: Crepe Paper is used as insulation material in Transformers to cover Copper and Aluminium conductors where flexibility is required.
Specification:
Characters:
Widely used as electrical insulation wrap on aluminium and copper wires, between layers of wound coils in electrical motors, capacitors, transformers, and other electrical equipment.
| Item | Unit | Crepe Paper (Base Paper) | |||
|---|---|---|---|---|---|
| 0.05mm | 0.075mm | 0.08mm | 0.13mm | ||
| Thickness | mm | 0.35±0.05 | 0.48±0.08 | 0.60±0.08 | 0.80±0.10 |
| Ash content | % | ≤ 0.7 | ≤ 0.7 | ≤ 1.0 | ≤ 1.0 |
| Moisture | % | 6.0-9.0 | |||
| Water extract PH | - | 6.0-8.0 | |||
| Polluted oil | % | ≤0.1 | |||
| Tensile MD | KN/M | ≥1.96 | ≥2.6 | ≥3.0 | ≥3.3 |
| Tensile TD | KN/M | ≥1.3 | ≥1.96 | ≥2.3 | ≥2.7 |
| Wrinkling | % | ≥ 50 | |||
| Breakdown voltage | V/layer | ≥950 | ≥1000 | ≥1000 | ≥1000 |

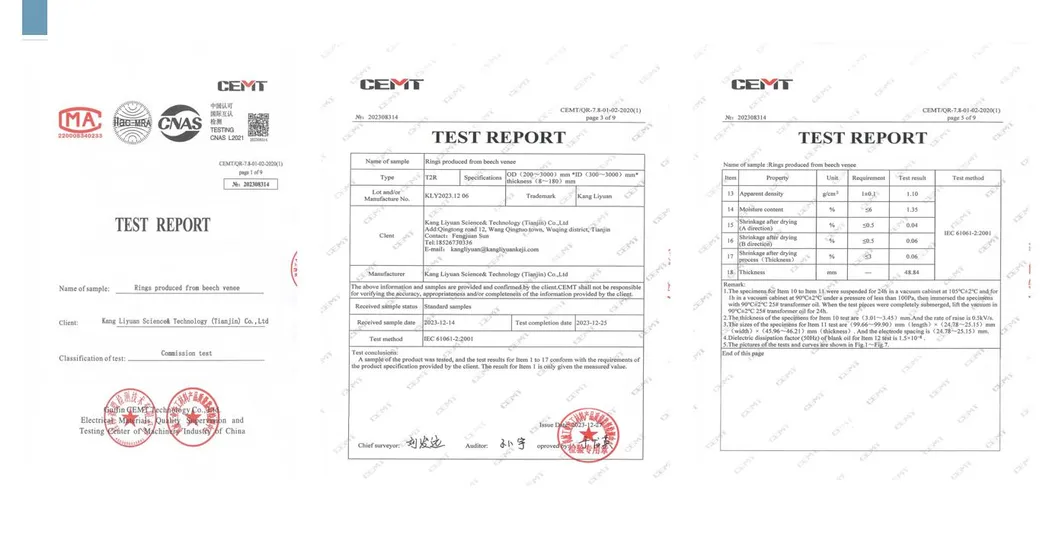

With consistent quality control throughout the entire process of product design, development, material procurement, production, quality inspection, and sales, the company has passed strict quality system certifications. Our products have distinct advantages in quality and have been widely recognized by well-known international customers.

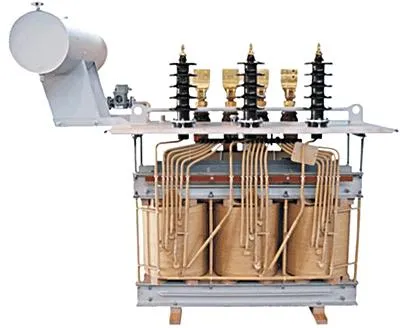

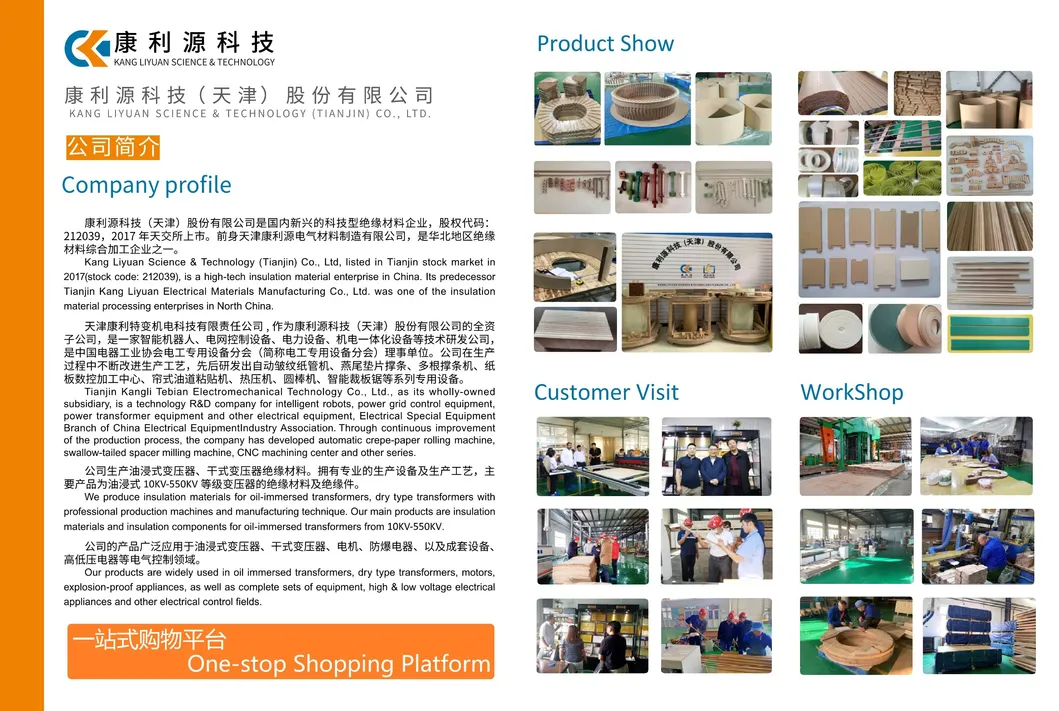

We are an emerging technology-based insulation material company. As a governing unit of the Insulation Materials industry, we specialize in comprehensive processing of insulation materials and parts. Our products are widely used in electrical control fields such as oil-immersed transformers (10kV-750kV), dry-type transformers, motors, and explosion-proof electrical appliances.
All products meet national, IEC, and ISO standards. With over 60 national inventions and utility model patents, our reliable quality and superb service have received warm praise from customers worldwide. We strive to be a leading material supplier in the transformer industry through continuous innovation.
