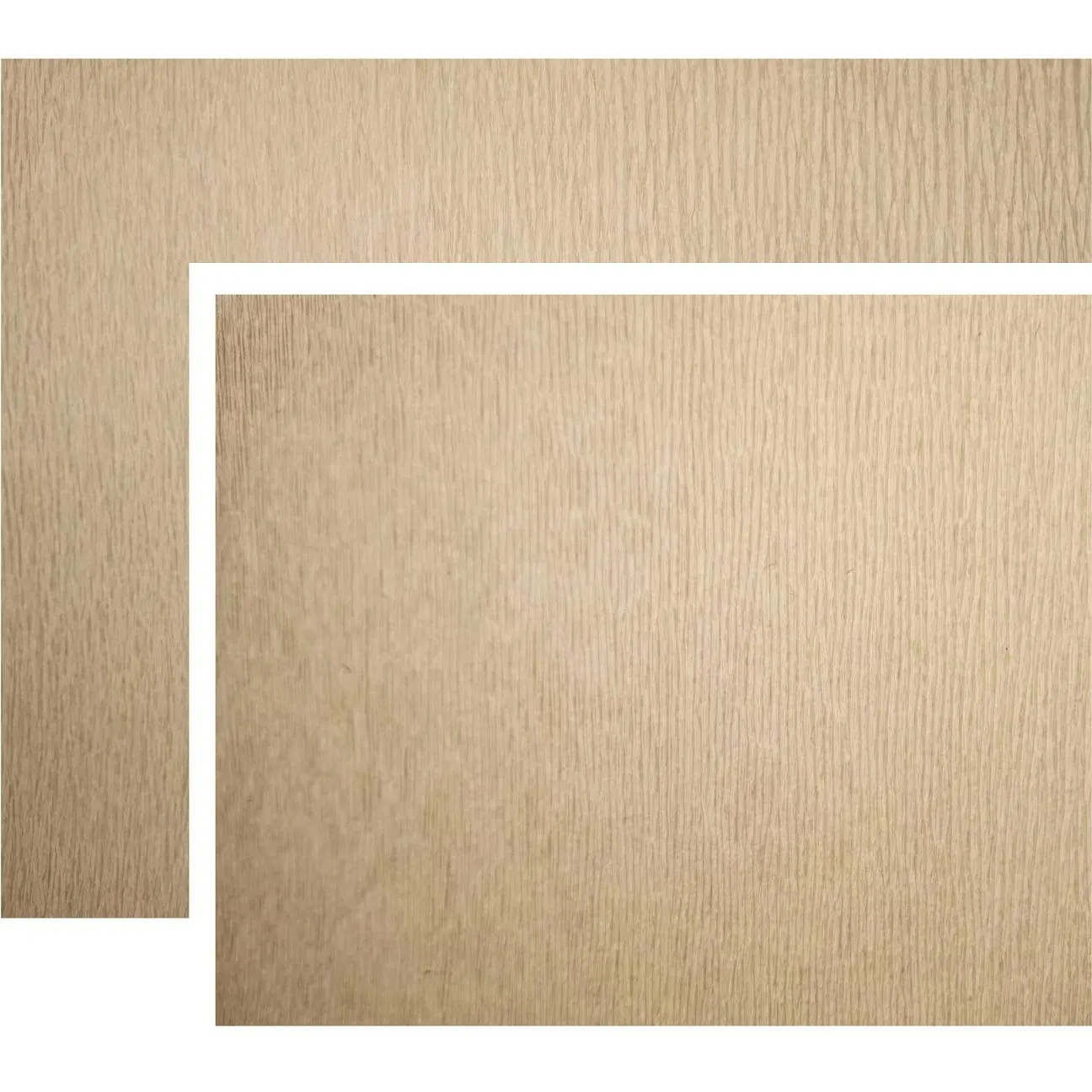

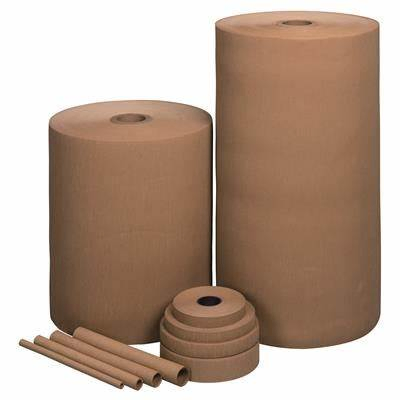

Crepe Paper

Basic Information

Model NO.

KLY-ZWZ

Material

Paper

Maximum Voltage

20KV~100KV

Thermal Rating

F 155

Type

Insulation Paper

Chemistry

Inorganic Insulation

Classification

Inorganic Insulation Material

Certification

ISO9001

Production Capacity

50000 Pieces a Year

Product Description

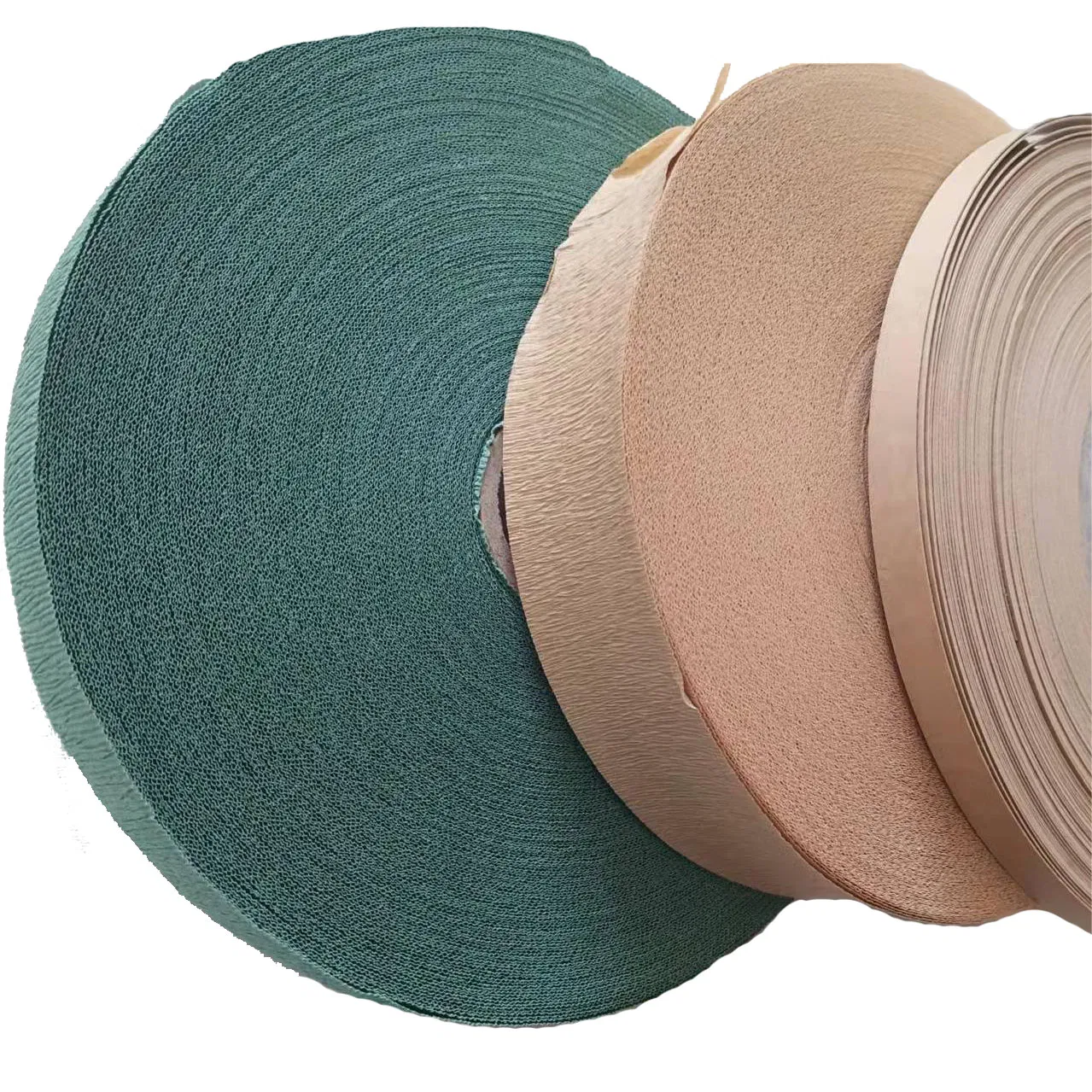

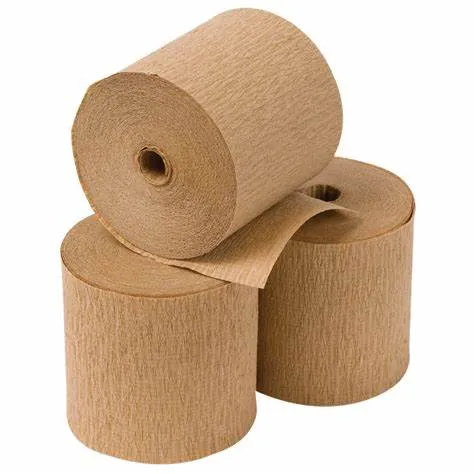

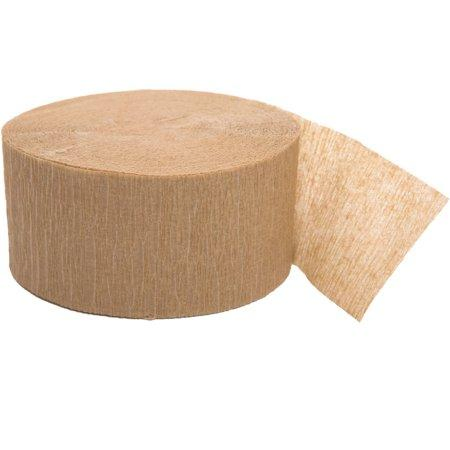

Insulating Crepe Paper

Description: Crepe Paper is used as insulation material in Transformers to cover Copper and Aluminium conductors where flexibility is required.

Specification:

Thickness range: 0.20mm - 0.65mm
Standard reel width: 800mm

Characters:

Good dielectric strength
Excellent compatibility with insulating liquids
Free from conductive particles

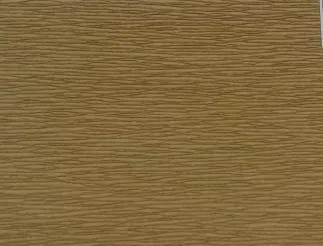

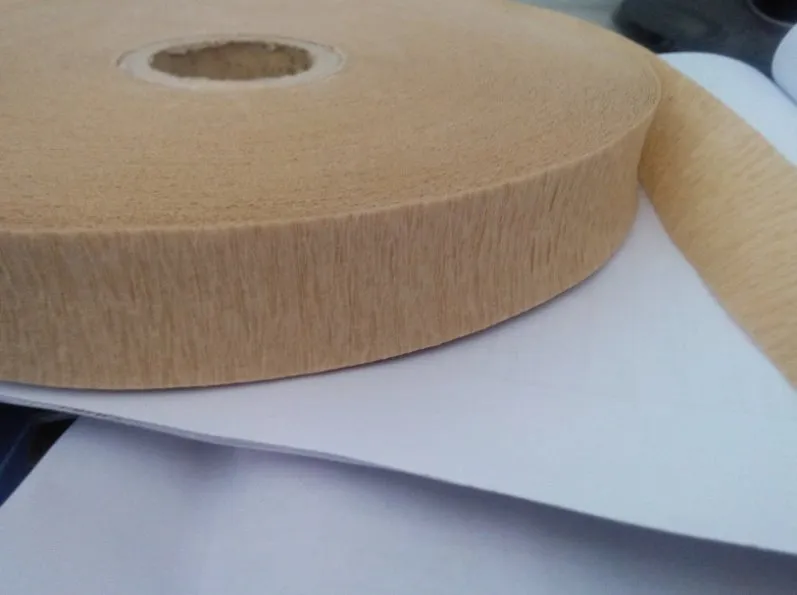

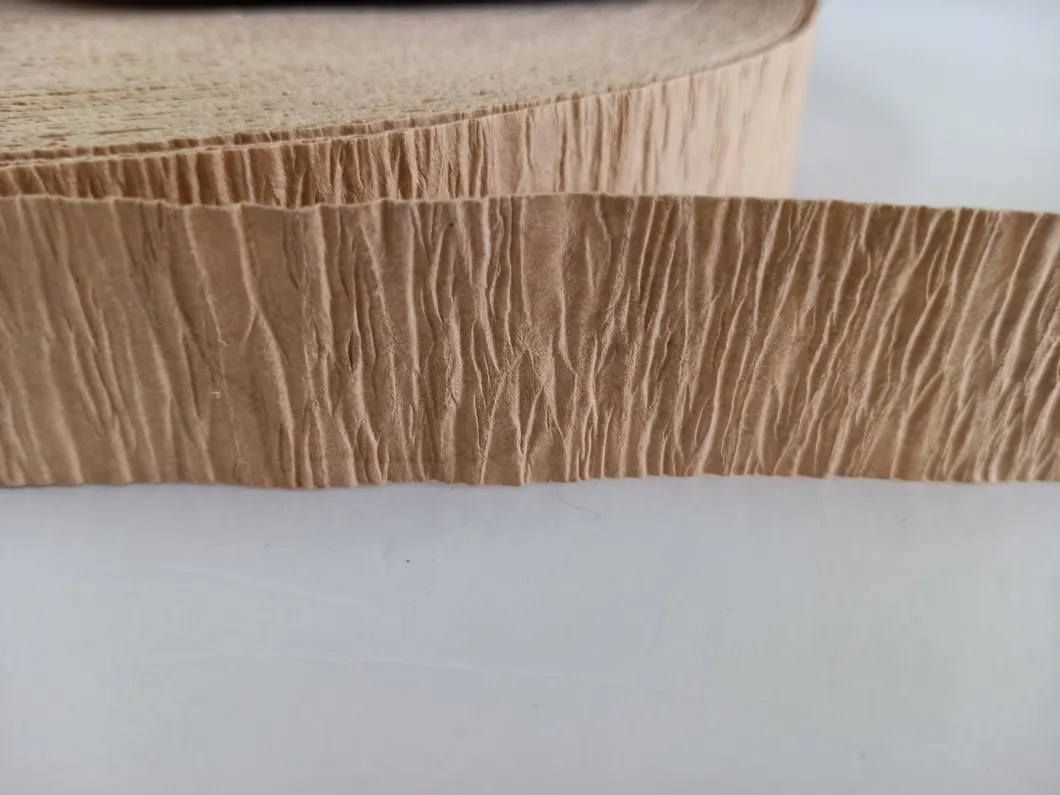

Detailed Photos

Product Parameters

Used widely as electrical insulation wrap on aluminium and copper wires by conductor manufacturers, electrical insulation between layers of wound coils in electrical motors, capacitors, transformers & other electrical equipment.

Item	Unit	0.05mm	0.075mm	0.08mm	0.13mm
Thickness	mm	0.35±0.05	0.48±0.08	0.60±0.08	0.80±0.10
Ash content	%	≤ 0.7	≤ 0.7	≤ 1.0	≤ 1.0
Moisture	%	6.0-9.0
Tensile MD	KN/M	≥1.96	≥2.6	≥3.0	≥3.3
Wrinkling	%	≥ 50
Breakdown voltage	V/layer	≥950	≥1000	≥1000	≥1000

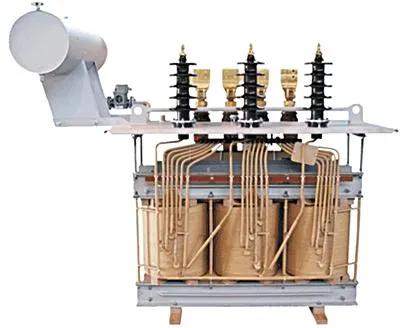

Application

Standard Crepe Paper: Power & Distribution Transformers, Paper Insulated Conductors, Bushings, Power Cables

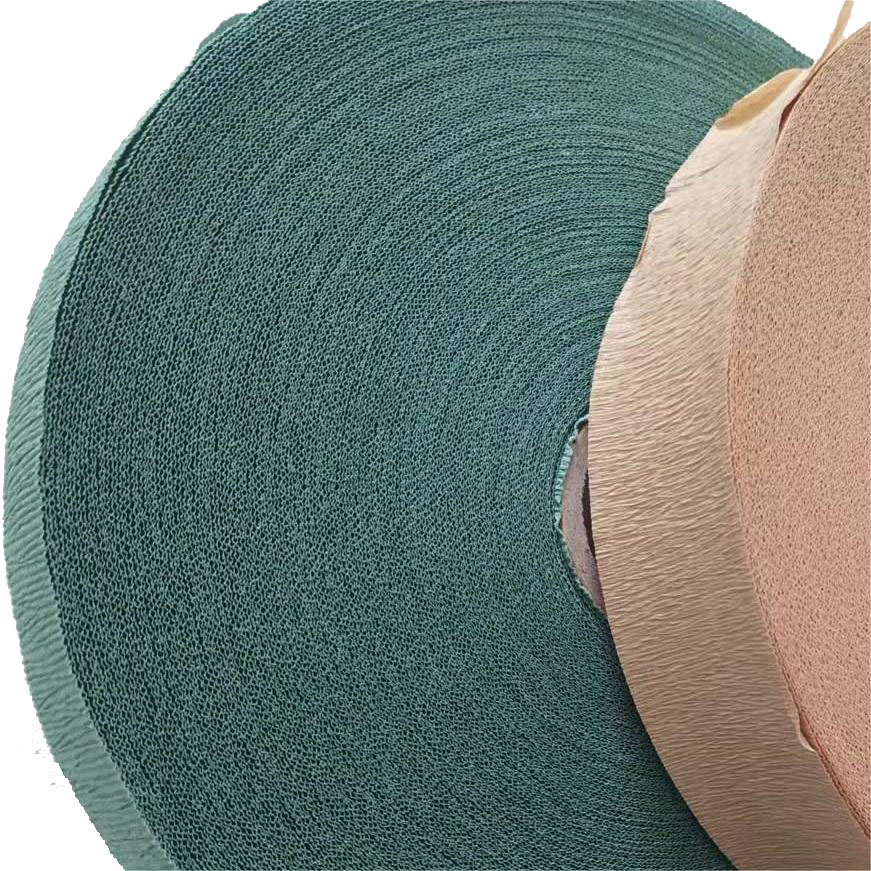

Semi-conductive Crepe Paper: Current Transformer (CT), Voltage Transformer (VT), Potential Transformer (PT), Power Cables

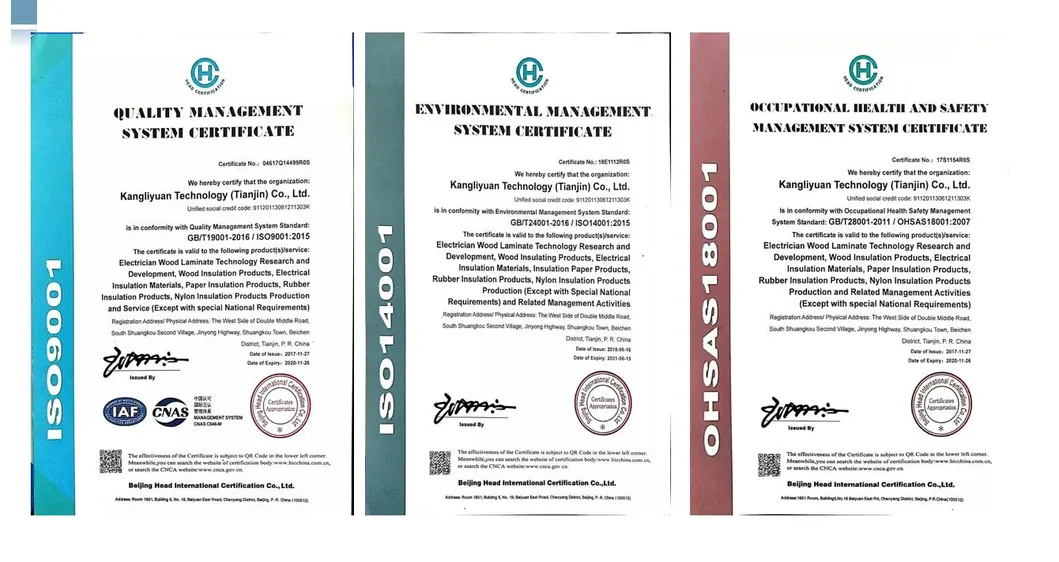

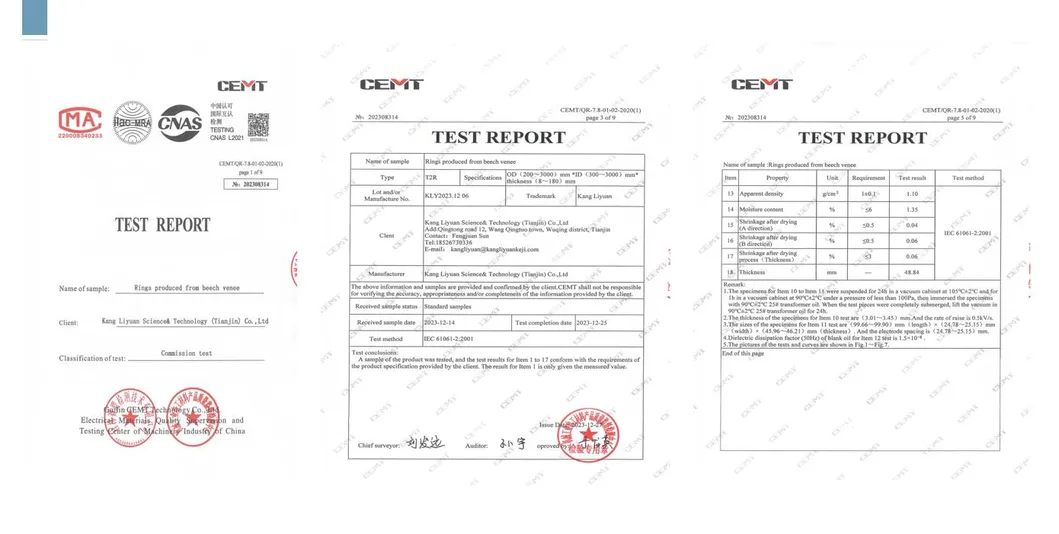

Certifications & Quality

Product Quality: With consistent quality control throughout the entire process of product design and development, material procurement, production, quality inspection, and sales, our products have passed strict quality system certification and have been widely recognized by well-known customers.

Packaging & Shipping

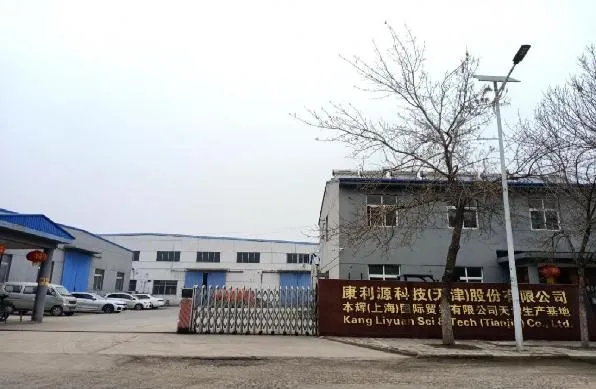

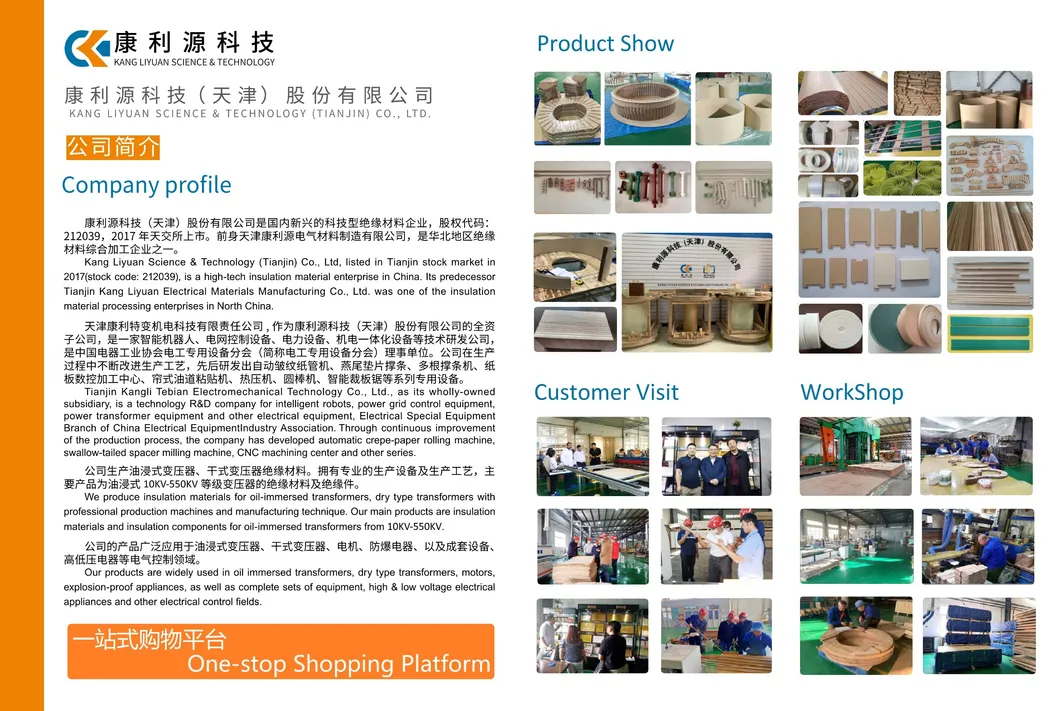

Profile

We are an emerging technology-based insulation material company. We hold membership certificates in industry associations and serve as a governing unit for insulation materials branches. We are a comprehensive processor of insulation materials and parts in North China.

Our products are widely used in electrical control fields such as oil-immersed transformers (10kV-750kV), dry-type transformers, motors, and high-voltage electrical appliances.

All products meet national, IEC, and ISO standards. We hold over 60 national inventions and utility model patents. We have received numerous awards including "National Hi-tech Enterprise" and "Quality Trustworthy Team" honors.

Customer Visit:

Frequently Asked Questions

Q: How do you ensure the product quality?

A: We consult on your requirements and recommend suitable products. We send samples before production, conduct quality checks throughout manufacturing, perform a final QA check before packaging, and follow up after shipment to ensure satisfaction.

Q: How do you guarantee the delivery date?

A: We assess timelines before production, prepare materials immediately upon payment, provide scheduled production updates, and handle booking immediately once the final balance is confirmed.

Q: What is the thickness range for your Crepe Paper?

A: Our standard thickness range for insulating crepe paper is between 0.20mm and 0.65mm, though base paper parameters can range from 0.05mm to 0.13mm.

Q: What are the primary applications for this insulation paper?

A: It is primarily used in power and distribution transformers, paper-insulated conductors, bushings, power cables, and current/voltage transformers (CT/VT).

Q: Does the paper have good compatibility with transformer oil?

A: Yes, our crepe paper offers excellent compatibility with insulating liquids and is free from conductive particles, ensuring high dielectric strength.

Q: Do your products comply with international standards?

A: Yes, all our insulation materials meet national standards as well as IEC and ISO international standards.
