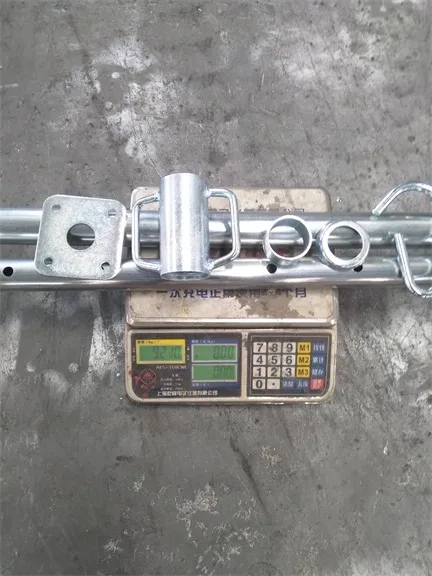

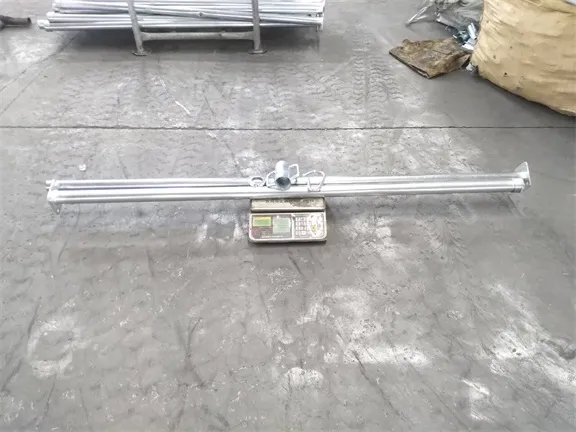

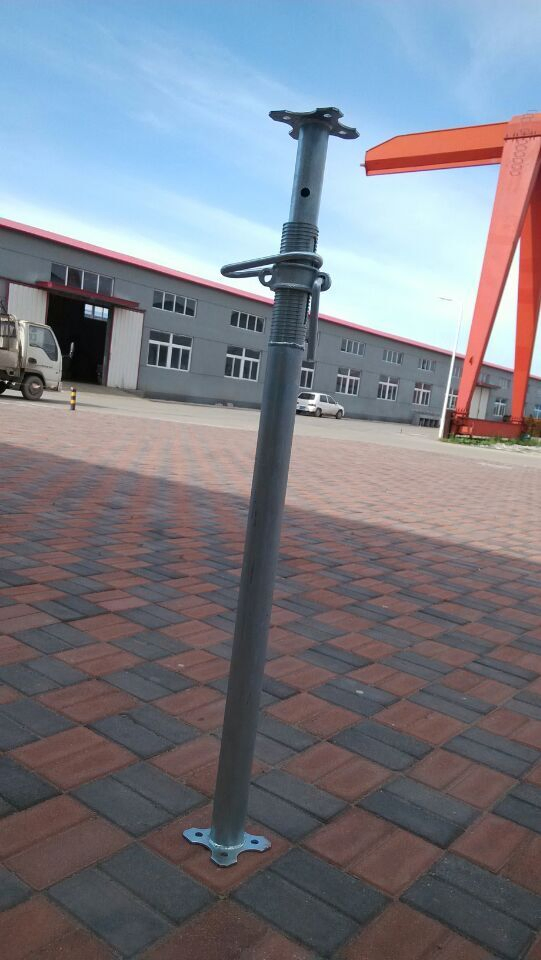

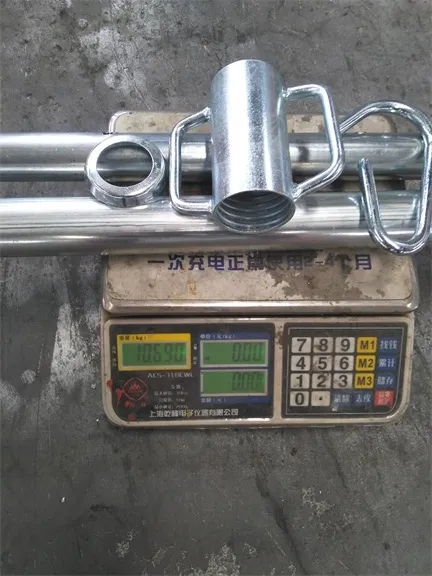

Adjustable Steel Prop with G Pin Flower Type Base Plate

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
LK16040101
Structural Style
Multi-Pole Scaffolding
Framework
Combined Scaffolding
Supporting Mode
Floor Type Scaffolding
Lapping Form
Double Scaffolding
Erection Position
External Scaffolding
Move Method
Attached Lifting Scaffolding
Scaffolding Part Type
Scaffolding Props
Construction Properties
Building Scaffold
Length
1.6-2.9m
Thickness
1.8mm
Surface Treatment
Painted, Galvanized, Powder Coated, EL-Gal
Pin Type
G Pin, Line Pin, Link Pin
Base Plate
Flower / Square Type
Transport Package
50PCS/Pallet
Origin
China
HS Code
73084000
Production Capacity
500,000 PCS Per Month

Product Description

  • Type: Scaffolding steel prop
  • Adjustable Length: 1.6-2.9m; 1.8-3.2m; 2.0-3.6m; 2.2-4.0m
  • Diameter Categories: Italian type (48/56mm); Spanish type (40/48mm); Middle East type (48/60mm)
  • Thickness Range: 1.6mm-3mm or as required
  • Plate Options: 120*120*4mm/5mm/6mm or flower type

Middle East Type Prop (48/60)

Material Adjustable Height (mm) Outer Tube OD (mm) Thickness (mm) Surface Treatment
Steel 1600-2900 60 1.8/2.0/2.2/2.5/3.0 Painted/Electro galvanized/Powder Coated
Steel 1800-3200 60 1.8/2.0/2.2/2.5/3.0 Painted/Electro galvanized/Powder Coated
Steel 2000-3600 60 1.8/2.0/2.2/2.5/3.0 Painted/Electro galvanized/Powder Coated
Steel 2200-4000 60 1.8/2.0/2.2/2.5/3.0 Painted/Electro galvanized/Powder Coated

Italian Type Prop (48/56)

Material Adjustable Height (mm) Inner Tube OD (mm) Outer Tube OD (mm) Thickness (mm) Surface Treatment
Steel 1600-2900 48 56 1.6/1.8/2.0/2.2 Painted/Electro Galvanized/Powder Coated
Steel 1800-3200 48 56 1.6/1.8/2.0/2.2 Painted/Electro Galvanized/Powder Coated
Steel 2000-3600 48 56 1.6/1.8/2.0/2.2 Painted/Electro Galvanized/Powder Coated
Steel 2200-4000 48 56 1.6/1.8/2.0/2.2 Painted/Electro Galvanized/Powder Coated

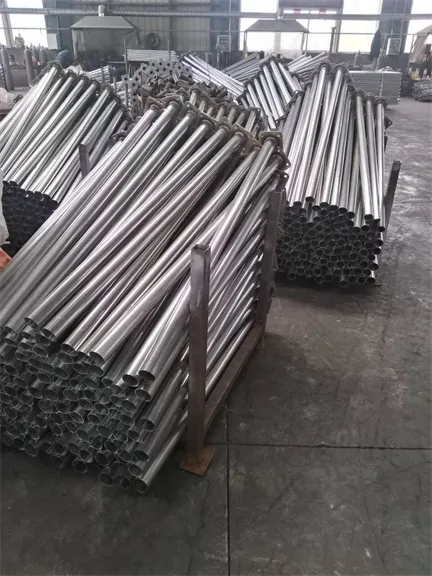

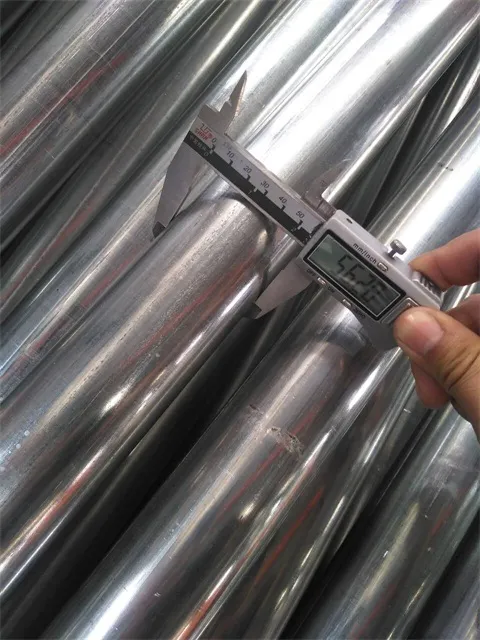

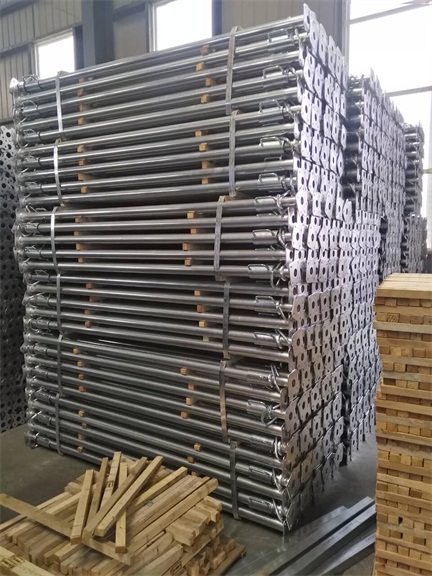

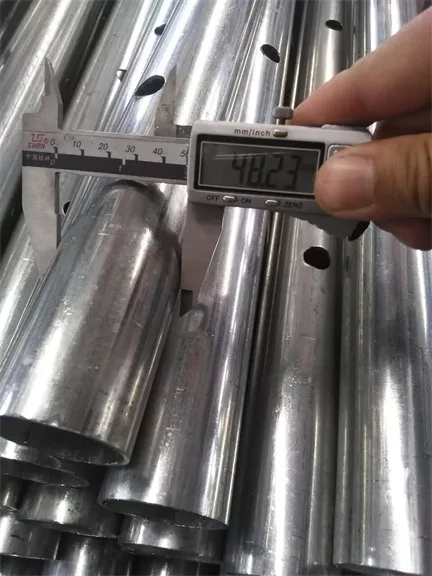

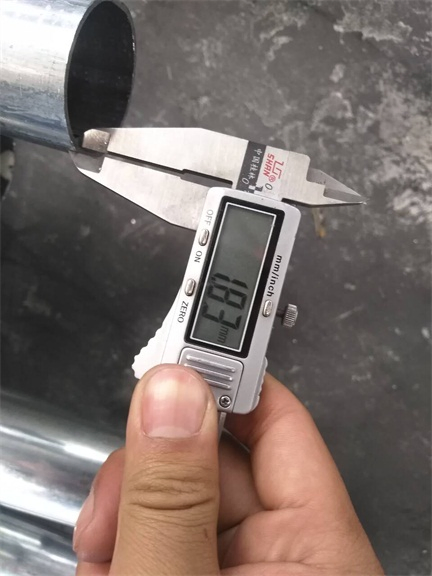

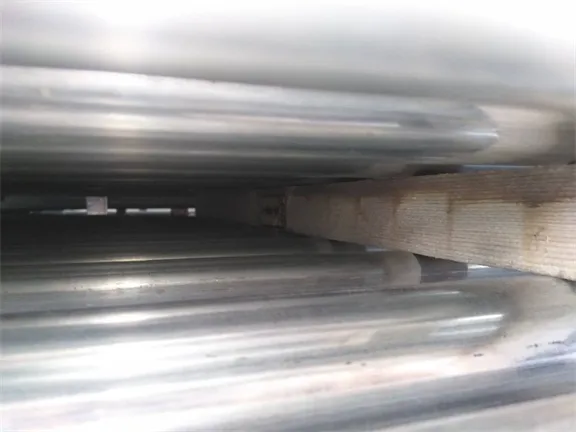

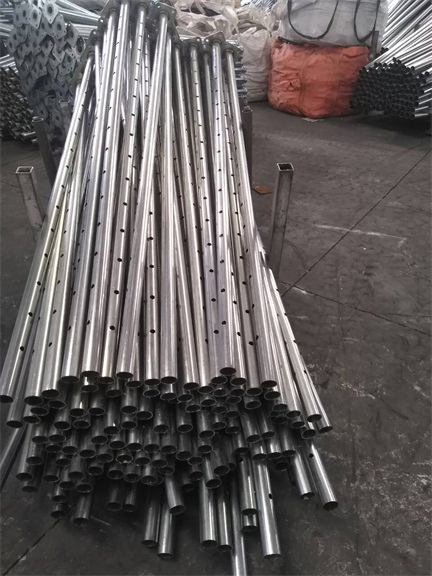

Spanish Type Prop (40/48) & Product Showcase

Frequently Asked Questions

What are the main surface treatments available for steel props?
The steel props can be finished with painting, electronic galvanization, powder coating, or EL-galvanization to ensure durability and corrosion resistance.
What types of adjustable steel props do you offer?
We offer three main types: Italian Type (48/56mm), Spanish Type (40/48mm), and Middle East Type (48/60mm) to suit different international construction standards.
What is the range of adjustable height for these props?
The adjustable height ranges typically include 1.6-2.9m, 1.8-3.2m, 2.0-3.6m, and 2.2-4.0m, allowing for versatile use in various building heights.
What kind of pin types and base plates are available?
Available pin types include G Pin, Line Pin, and Link Pin. Base plates come in both Flower and Square types depending on your structural requirements.
What is the monthly production capacity for these scaffolding props?
We have a robust production capacity of approximately 500,000 pieces per month to meet large-scale construction demands.
What materials and thicknesses are used in manufacturing?
High-quality steel is used, with thicknesses ranging from 1.6mm to 3.0mm, or customized according to specific project requirements.
